Description:

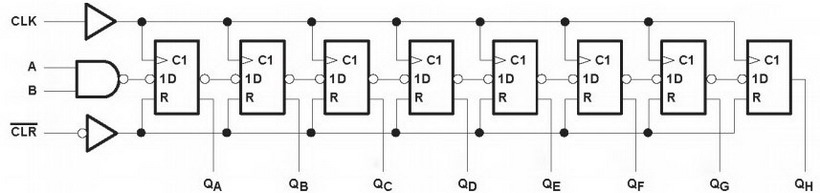

These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) input permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum setup time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.
Features:
_Wide Operating Voltage Range: 2 V to 6V
_Outputs Can Drive Up To 10 LSTTL Loads
_Low Power Consumption, 80-μA Max ICC
_Typical t(pd) =20 ns
_±4 mA Output Drive at 5V
_Low Input Current of 1μA Max
_AND-Gated (Enable/Disable) Serial Inputs
_Fully Buffered Clock and Serial Inputs
_Direct Clear
Applications:
_LED Display
