Description:
The HT1621B is a 128 pattern (32x4), memory mapping, and multi-function LCD driver. The S/W configuration feature of the HT1621B makes it suitable for multiple LCD applications including LCD modules and display sub-systems. Only three or four lines are required for the interface between the host controller and the HT1621B. The HT1621B contains a power down command to reduce power consumption.
Features:
_Operating voltage: 2.4V ~ 5.2V
_Built-in 256kHz RC oscillator
_External 32.768kHz crystal or 256 kHz frequency source input
_Selection of 1/2 or 1/3 bias, and selection of 1/2 or 1/3 or 1/4
_duty LCD applications
_Internal time base frequency sources
_Two selectable buzzer frequencies (2kHz/4kHz)
_Power down command reduces power consumption
_Built-in time base generator and a WDT
_Time base or WDT overflow output
_8 kinds of time base/WDT clock sources
_32x4 LCD driver
_Built-in 32x4 bit display RAM
_3-wire serial interface
_Internal LCD driving frequency source
_Software configuration feature
_Data mode and command mode instructions
_R/W address auto increment
_Three data accessing modes
_VLCD pin for adjusting LCD operating voltage

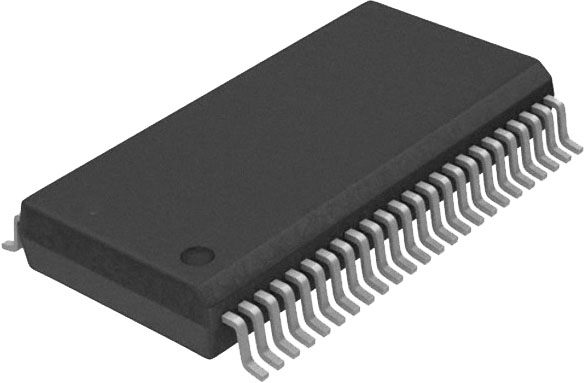

_48-pin SSOP packages
Applications:
_LCD Display Screen
