Description:
The SR36006 regulator is an easy-to-use,synchronous, step-down DC/DC converter. With integrated high-side and low-side Power MOSFETs, up to 0.6 A of output current can be delivered over a wide input voltage range from 4.2V to 60 V, with transient tolerance up to 66 V. The transient tolerance reduces the necessary design effort to protect against over-voltages and meets the surge immunity requirements of IEC 61000-4-5.
The SR36006 employs peak current-mode control to provide optimal efficiency and output voltage accuracy. Precision enable supports precise control over a direct connection to the wide input voltage or device start-up and shutdown. The power-good flag, with built-in filtering and delay, offers a true indication of system status, and negates the requirement for an external supervisor. The device requires few external components and has a pinout designed for simple PCB layout. The small solution size and feature set of the SR36006 is designed to simplify implementation for a wide range of end equipment, including space critical applications of ultra-small field transmitters and vision sensors.
Features:
_Input Transient Protection up to 66 V
_Junction Temperature Range –40°C to +150°C
_Protection Functions: Thermal Shutdown, Input Under-voltage Lockout, Cycle-by-Cycle Current Limit, Hiccup Short-Circuit Protection
_0.2V voltage drop(TYP) over 0.6A Load
_Suited for Scalable Industrial Power Supplies
-Pin Compatible With SR36015 (60V, 1.5A) and SR33620/30 (36V, 2A/3A)
-1 MHz, 2.1 MHz Frequency Options Available
_Integration Reduces Solution Size and Cost

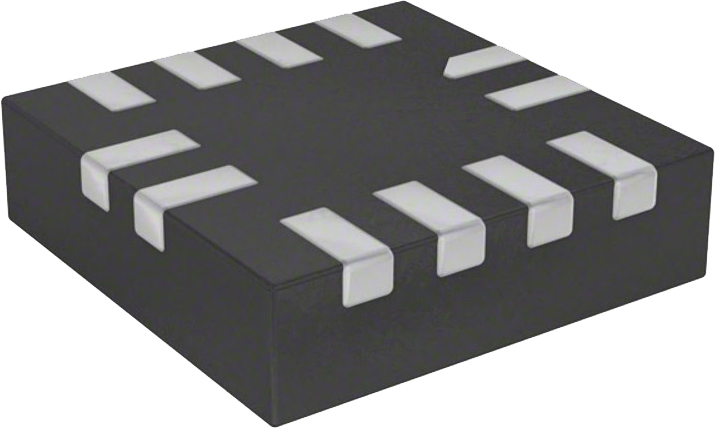

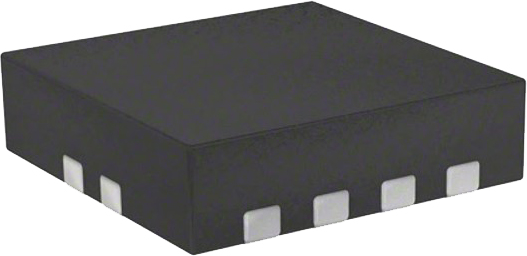

_Small, 3-mm × 2-mm HotRod? Package
_Few External Components with Integrated
_Rectification and Internal Compensation
_Low Power Dissipation Across Load Spectrum
– 92% Efficiency at 1 MHz (12 Vin, 5 Vout, 0.6 A)
– 87% Efficiency at 1 MHz (24 Vin, 5 Vout, 0.6 A)
– Increased Light Load Efficiency with Automatic Transition into PFM
– Low Operating Quiescent Current of 26 μA
_SR36006 has frequencies available in 450 kHz and 2.1 MHz, adjustable output and fixed 3.3V.
Applications:
_Field Transmitters, Machine Vision, PLC Modules
_Thermostats, Video Doorbells, HVAC Systems
_AC and Servo Drives, Rotary Encoders
_General-Purpose Wide Input Voltage Regulators
