Description:
The SR33630 SIMPLE SWITCHER regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged industrial applications. The SR33630 drives up to 3A of load current from an input of up to 36 V.
The SR33630 provides light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications.
The SR33630 automatically folds back frequency at light load to improve efficiency. Integration eliminates most external components and provides a pin-out designed for simple PCB layout. Protection features include thermal shutdown, input under voltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection.

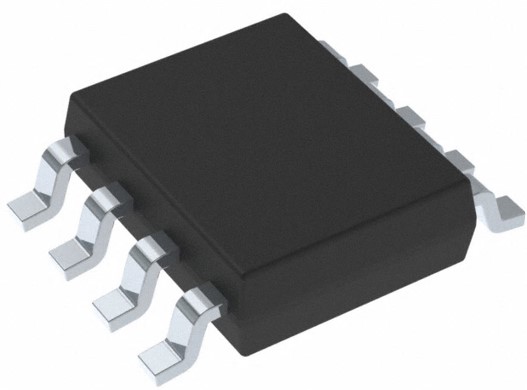

The SR33630 is available in an 8-pin HSOIC package and in a 12-pin 3 mm × 2 mm next generation VQFN package with wet flanks. This device is also available in an AEC-Q100-qualified version.
Features:
_Input voltage range: 3.8 V~36 V
_Output voltage range: 1 V~24 V
_Output current: 3A
_75-mΩ/50-mΩ RDS-ON power MOSFETs
_Peak-current-mode control
_Short minimum on-time of 68 ns
_Frequency: 450 kHz, 1.4 MHz, 2.1 MHz
_Junction temperature range –40°C to +125°C
_Low EMI and low switching noise
_Integrated compensation network
_Low EMI and switching noise
_High power conversion at all loads
– Peak efficiency > 95%
– Low operating quiescent current of 25 μA
Applications:
_Motor drive systems: drones, AC inverters, VF drives, servos
_Factory and building automation systems: PLC CPU, HVAC control, elevator control
_Wide Vin powers for general purpose
