Description:
The SR1470A is a synchronous step-down regulator with an internal power MOSFET. The SR1470A achieves 2A a of continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Hiccup protection, the cycle-by-cycle over current limit and thermal shutdown. Soft-start function reduces the stress
on the input source at startup. The SR1470A requires a minimal number of readily available external components, providing a compact solution.
Features:
_Input voltage range: 3.5V~17V
_Output adjustable voltage: 0.8V~1.2V
_Low quiescent current: 100μA
_170mΩ/80mΩ Low-RDS(ON) internal Power MOSFETs
_High efficient operations, including CCM, DCM and PSM
_500kHz Switching frequency
_Internal soft-start
_Over-current protection and hiccup protection
_Thermal shutdown

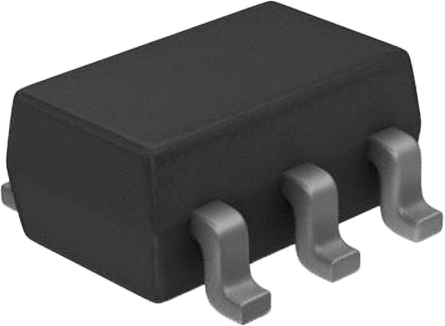

_TSOT-23-6P Package
Applications:
_Communication
_Display
_Monitor
